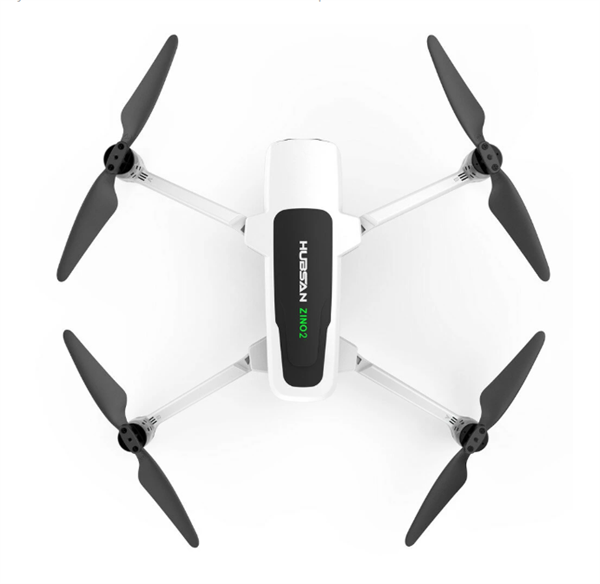

| Hubsan ZINO 2 |
Size |
32.60 x 26.00 x 9.49 cm |
| Weight (Propeller + battery) |
929g |
| Motor |
Brushless Motor |
| Maximum Take-off Altitude |
5000m |
| Max Flying Time |
33mins (windless) |
| Max Hovering Time |
32mins (windless) |
| Max. Endurance Mileage |
20km (50km/h windless cruising) |
| Wind Resistance |
5-level |
| Max. Tiltable Angle |
25 degrees (normal mode);
35 degrees (sports mode) |
| Max. Rotational Speed |
150 degrees/s |
| Max Flying Speed |
Movie mode: 1m/s
Normal mode: 12m/s
Sport mode: 20m/s |
| Max Ascent Speed |
Normal mode: 3m/s
Sport mode: 5m/s |
| Max Descent Speed |
Normal mode: 2m/s
Sport mode: 3m/s |
| Working Temperature |
-10 Deg.C - 40 Deg.C |
| Working Frequency |
5.725 - 5.850 GHz |
| Positioning |
GPS + GLONASS |
| Camera |
Image Sensor |
1/2.3 inch CMOS sensor |
| View Angle |
80° |
| Equivalent Focal Length |
24-48mm |
| Aperture |
F/2.2 TTL 23 mm |
| ISO Range |
Photography: 100-1600 (automatic); 100-3200 (manual)
Video: 100-3200 (automatic); 100-3200 (manual) |
| Shutter Speed |
1/8000 - 1/30 |
| Resolution |
4K: 3840*2160 30/60fps /
2.7K: 2704*1520 30/60fps /
1080P: 1920*1080 30/60/120fps /
720P: 1280*720 30/60/120/200fps |
| Video Maximum Bitrate |
100Mbps |
| Support File System |
FAT32 |
| Image Format |
JPEG/DNG (RAW) |
| Video Format |
MP4 / MOV (h.264 / mpeg-4 AVC) |
| Gimbal |
Structural Design Range |
Pitch: -135 degrees to 45 degrees;
Roll: -40degrees to 40 degrees;
Shift: -35 degrees to 35 degrees |
| Controllable Rotation Range |
Pitch -90 degrees to 0 degrees |
| Stability System |
3-axis gimbal |
| Maximum Control Speed (Pitch) |
100°/s |
| Angle jitter |
±0.01° |
| Image Transmission |
Image Transmission System |
LEAS 2.0 |
| Distance |
8KM |
| Transmission power (EIRP) |
<=26dbm |
| Band |
5.725-5.850 GHz |
| Battery |
Capacity |
3800 mAh |
| Nominal Voltage |
17.4V (4S) |
| Charging Limit Voltage |
17.6V |
| Battery Type |
intelligent lithium battery, accurate calculation of battery power,
ensure the safety of battery life |
| Energy |
66.12Wh |
| Weight |
310 g |
| Charging Environment Temperature |
-10 Deg.C- 40 Deg.C |
| Maximum Charging Power |
52.2W |
| Charger |
Input Voltage |
100V-240V |
| Input Current |
2A |
| Output Voltage |
17.1V-18.9V |
| Output Current |
0.0- 3.33A |
| Rated Output Power |
54W |
| Remote Control |
Operating Frequency |
5.725-5.850 GHz |
| Maximum Effective Signal Distance |
8KM (No interference, No obstacle) |
| Operating Environment Temperature |
-10 Deg.C- 40 Deg.C |
| Built-In Battery |
3350mAh |
| Mode |
Mode 2 (Left Hand Throttle) |
| Working Current/Voltage |
3.7V, 1400mA (connecting the android devices);
750mA 3.7V (connecting the iOS devices) |
| Support Mobile Device Size |
Maximum Length: 160mm;
Thickness: 6.5 - 8.5mm |
| Interfaces Type |
Lightning / Micro USB / Type-C |
| Charging |
Micro USB |
